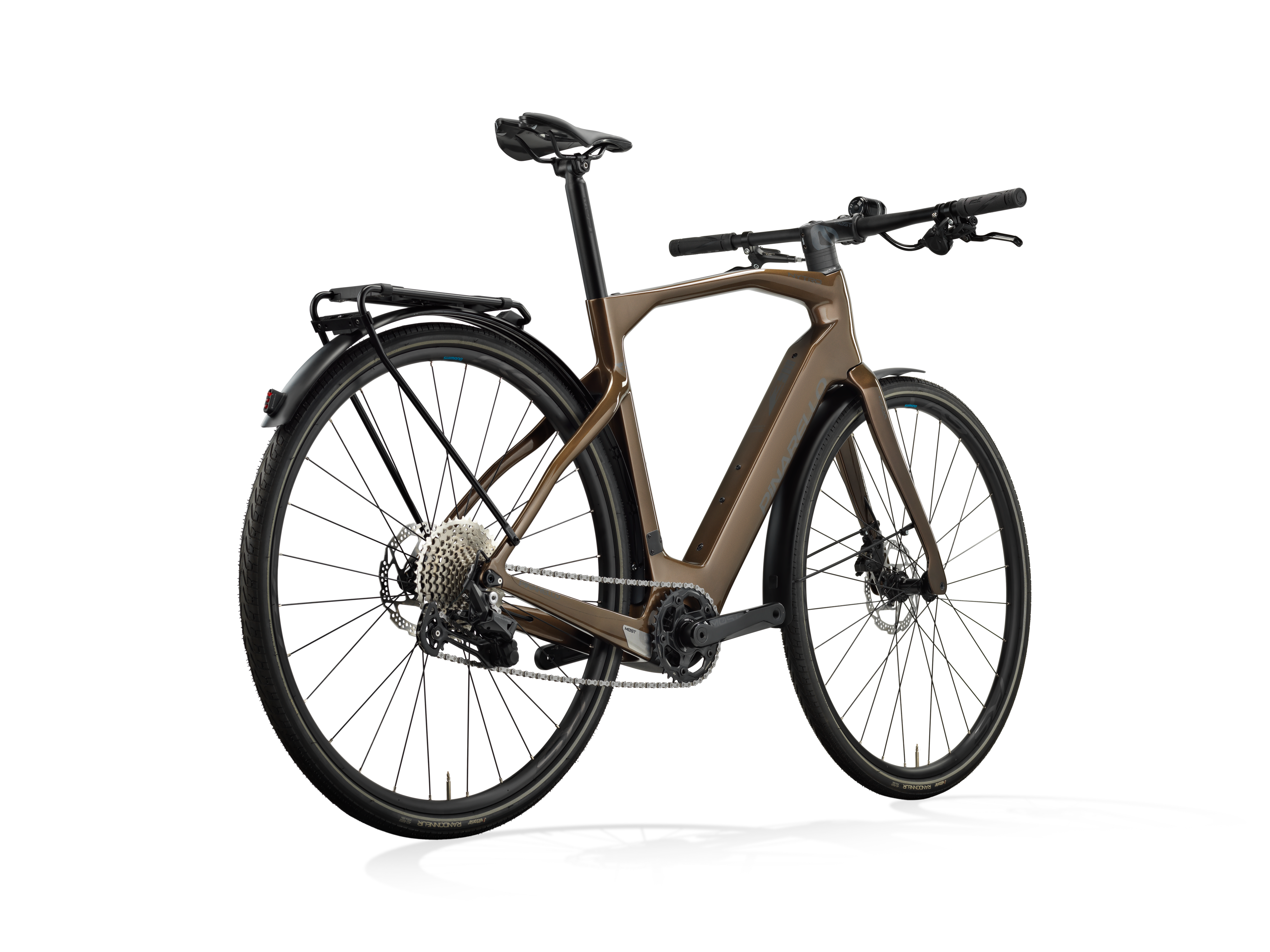

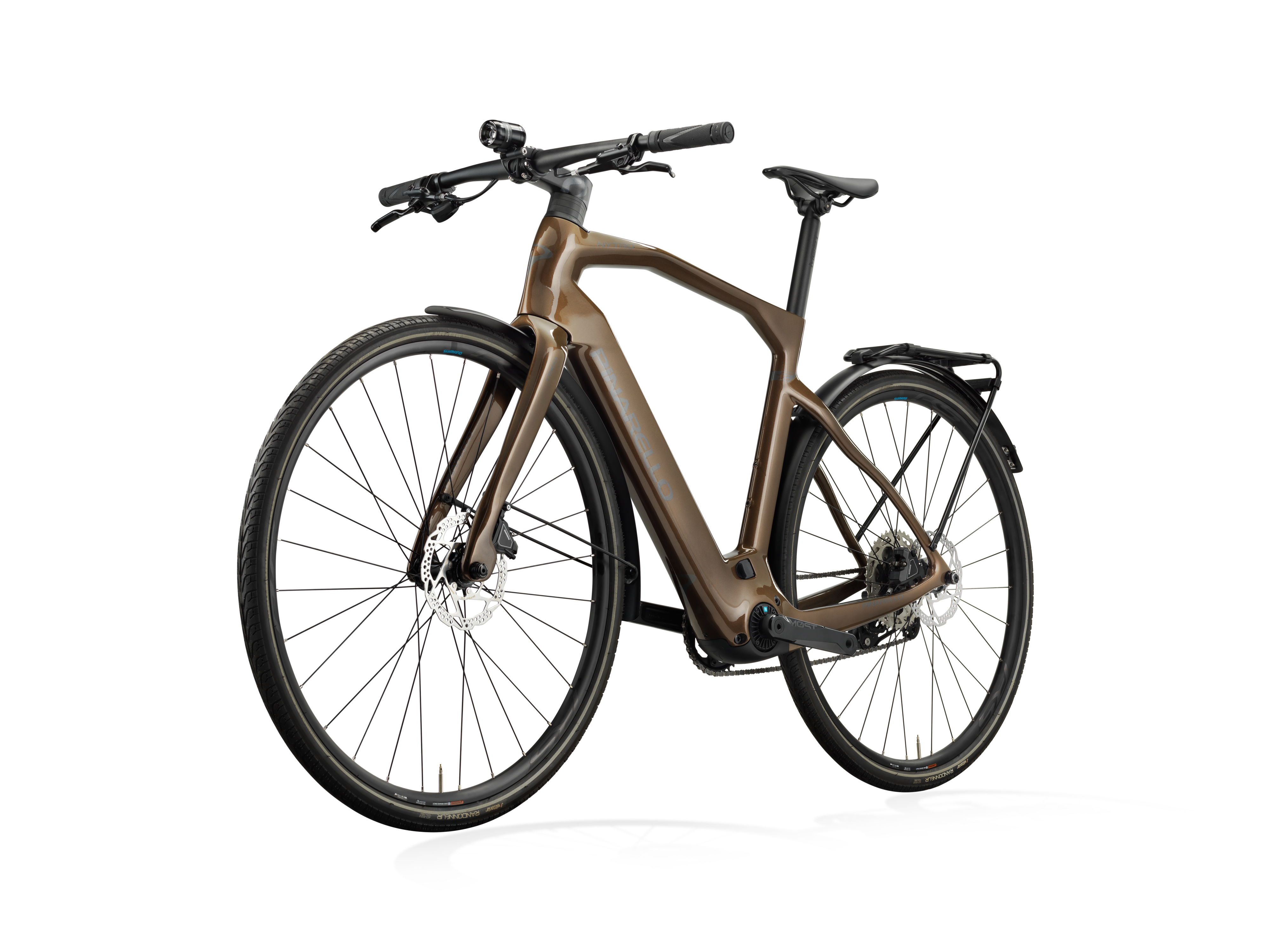

The new Nytro E-line opens up a world of possibilities to experience cycling! This range is designed for all cyclists looking to enjoy the emotions of cycling. It’s created with adventure in mind, allowing riders to tackle long rides and the steep climbs of Alpine passes with more agility and confidence than a traditional road bike.

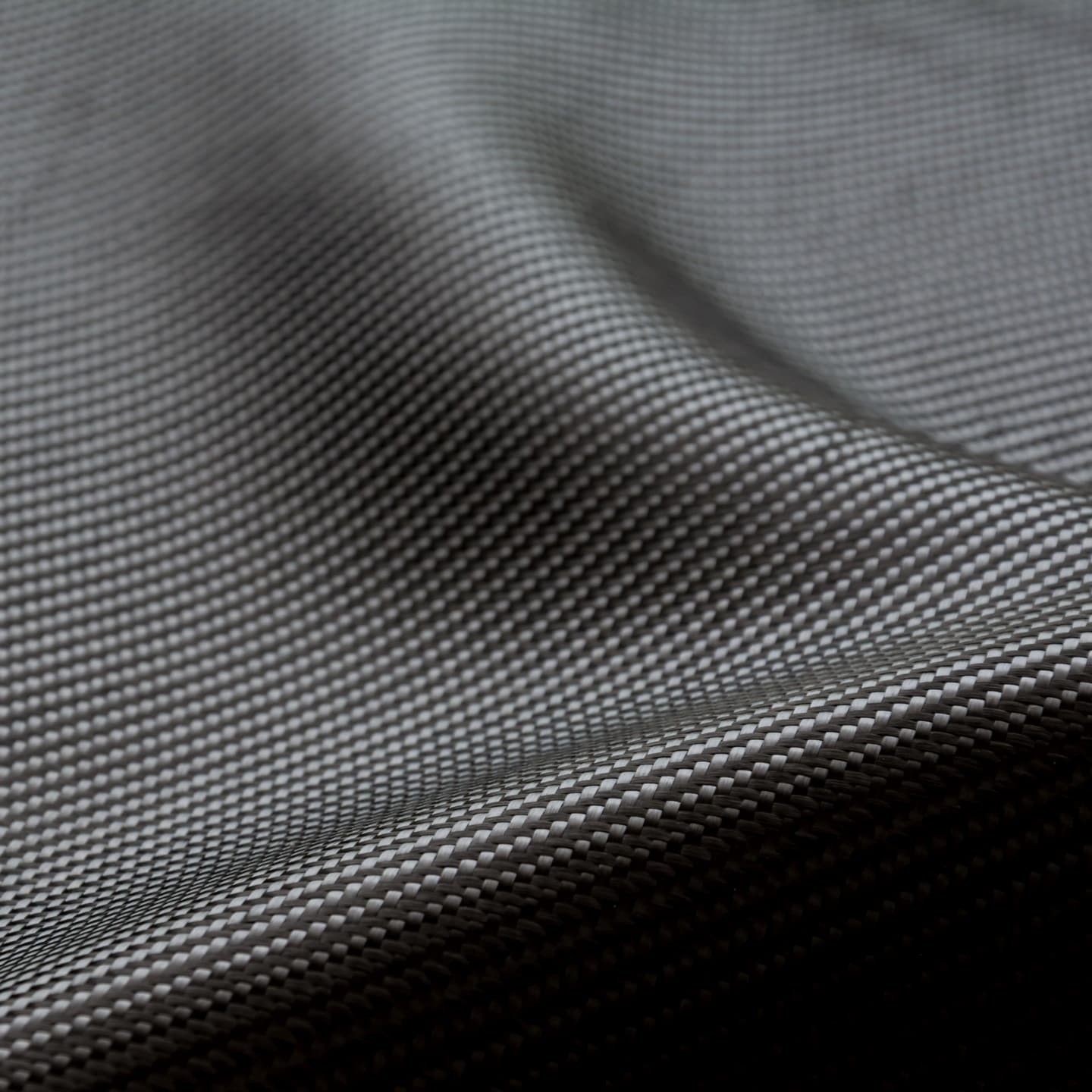

The secret of T700 Toray Carbon is to maintain reactivity and performances but to offer a higher dampening to absorb all road vibration. More comfort, more fun.

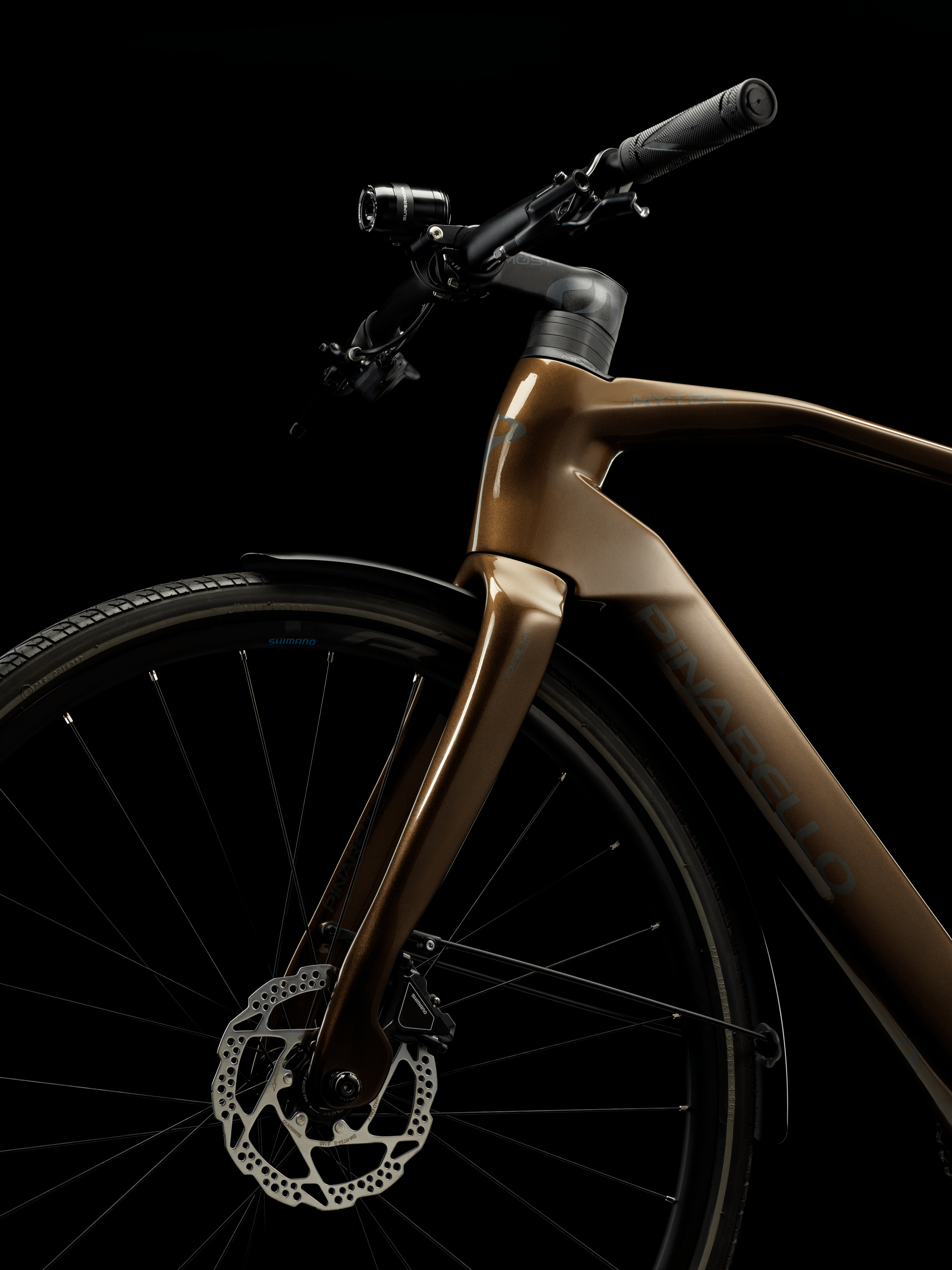

A distinctive Pinarello Technology since 2000. The shape of the fork delivers precise turning abilities, stability and reduction of longitudinal and lateral shocks.

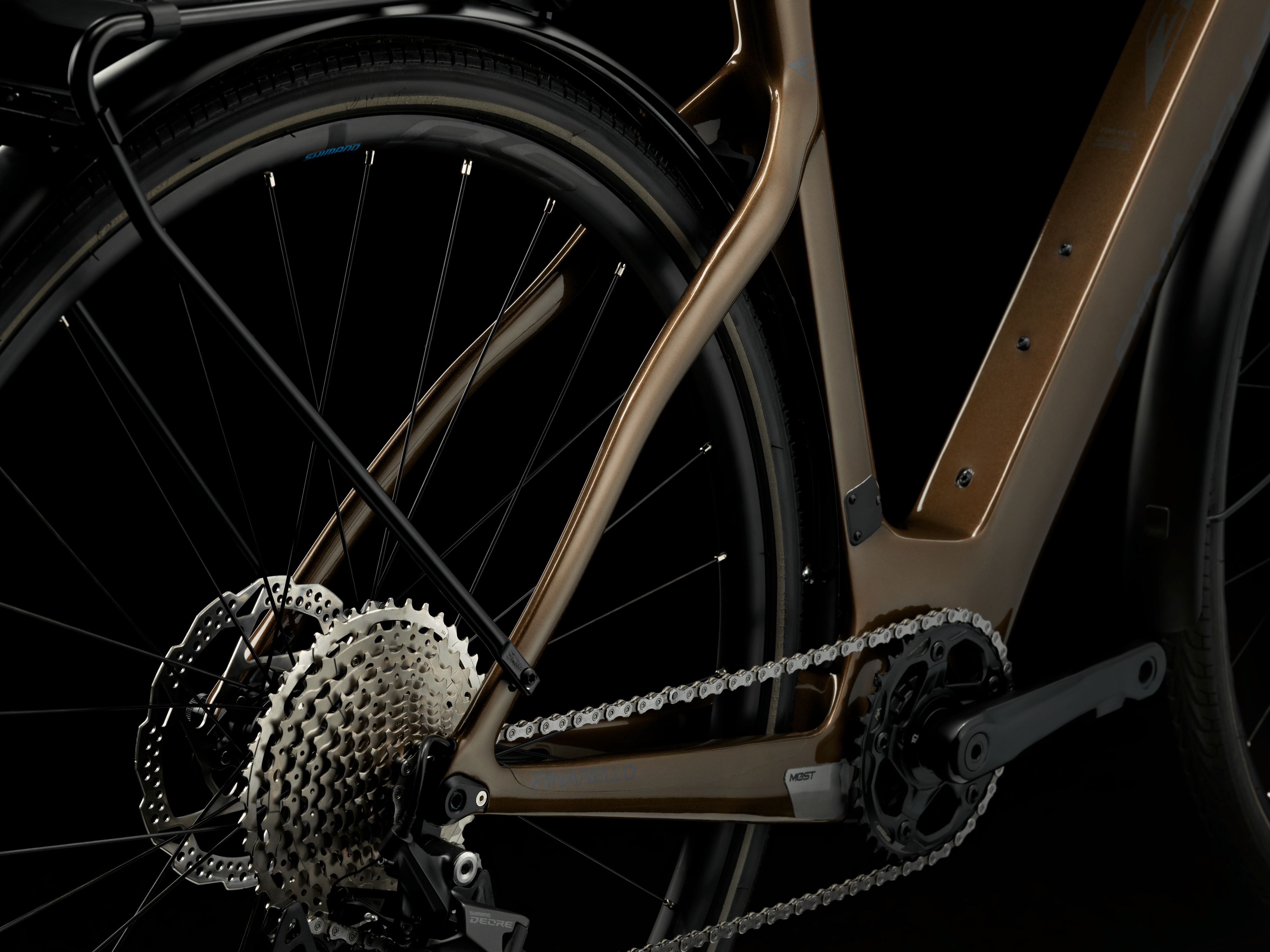

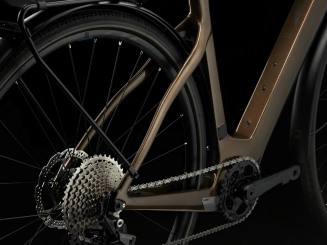

Since the beginning, Pinarello understood that while the thrust applied to both pedals is the same, the pull on the chain applies to the right side only. For this reason, all frames are optimized to compensate these unbalanced forces.

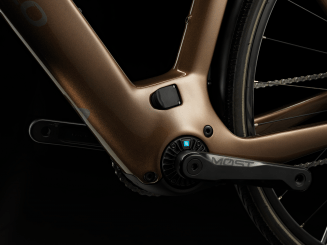

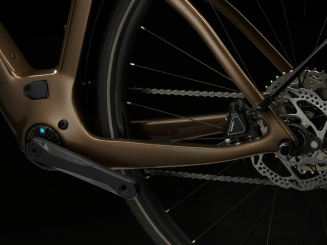

The Harmonic Pin Ring Transmission (HPR) is a result of TQ’s decades-long experience in the development and engineering of electric motors for robots, satellites, space stations and mars rovers.

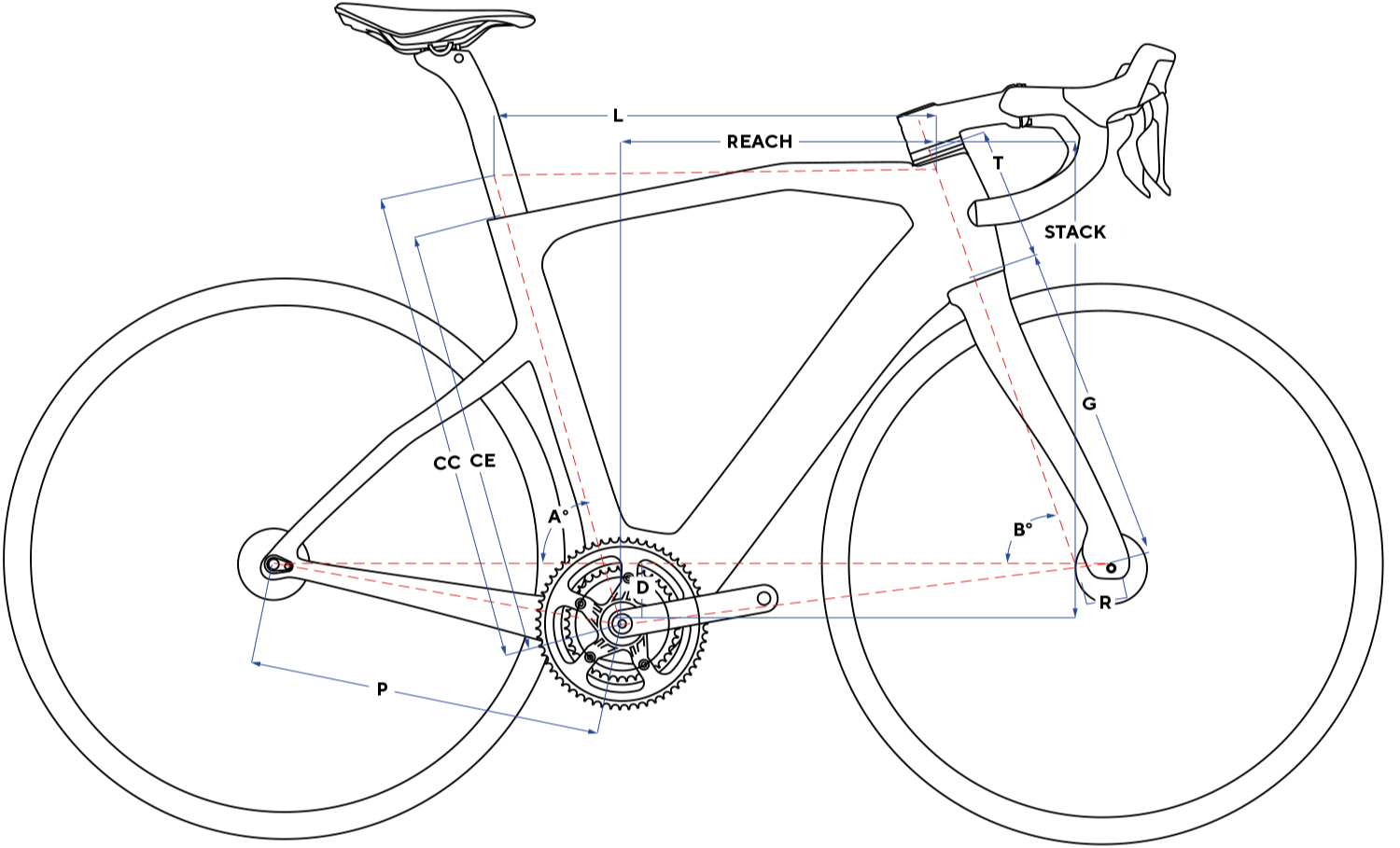

CE | CC | L | A [°] | B [°] | P | T | D | R | G | REACH | STACK |
---|---|---|---|---|---|---|---|---|---|---|---|
440 | 460 | 523 | 74.5 | 69.75 | 437 | 125 | 78 | 50 | 395 | 357.4 | 558.9 |
480 | 500 | 535 | 74 | 70 | 437 | 137 | 78 | 50 | 395 | 364.2 | 571.2 |
510 | 530 | 550 | 73.75 | 70.25 | 437 | 155 | 78 | 50 | 395 | 372.9 | 589.1 |
530 | 550 | 564 | 73.5 | 71 | 437 | 170 | 78 | 50 | 395 | 380.6 | 606.3 |
565 | 575 | 581 | 73 | 71.25 | 437 | 190 | 74 | 50 | 395 | 388.3 | 622.3 |
590 | 600 | 597 | 72.75 | 71.5 | 437 | 210 | 74 | 50 | 395 | 395.9 | 642.3 |
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
NYTRO E5 ALLROAD - SHIMANO DEORE |
NYTRO E5 GRAVEL - SRAM RIVAL AXS |
NYTRO E5 ROAD - 105 Di2 |
|
---|---|---|---|
FRAME SIZES | 6 | 6 | 6 |
FRAME | torayca t700 ud, with integrated battery and cable routing, 12x142 tru-axle | ||
GROUPSET | SHIMANO DEORE | SRAM RIVAL AXS | SHIMANO 105 Di2 |
WHEELSET DISC | Shimano RS | Fulcrum Racing 500 | |
RIM |
