Bolide F

Dura Ace Di2 - Top Black

OUR FASTEST BIKE EVER!

Originally created exclusively for Team Sky in 2013, the Bolide became legendary in 2015 when Sir Bradley Wiggins used the Bolide HR to break the Hour Record. Pinarello then introduced the Bolide TT in 2016, which went on to win countless TT competitions during grand tours, national and world championships on the road while also storming to unparalleled success on the track, winning multiple medals on team and individual pursuit at world championships and at the Olympics.

Building on that impressive foundation, Pinarello has incorporated the latest technological advances, including impressive recent developments in Computational Fluid Dynamics that have helped Pinarello’s engineers to significantly improve aerodynamics on the new Bolide F. Pinarello’s engineers were able to not only design a more aerodynamic bike, but also reduce the weight of the frame kit and brakes by 170g.

Bolide F
Innovation

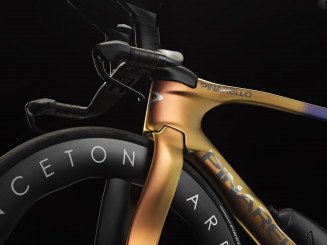

ONDA FORK
ITALIAN BB
FORK FLAP
FLATBACK PROFILE
RACE GEOMETRY
CARBON M40X

Geometries

CE CC L A [°] B [°] P T D R G REACH STACK
472 450 488 77 72 395 70 57 43 368.5 380 461
492 485 507 77 72.5 395 82 62 43 368.5 396 479
508 520 526 77 73 395 96 62 43 368.5 413 494
521 550 545 77 73 395 110 62 43 368.5 430 507

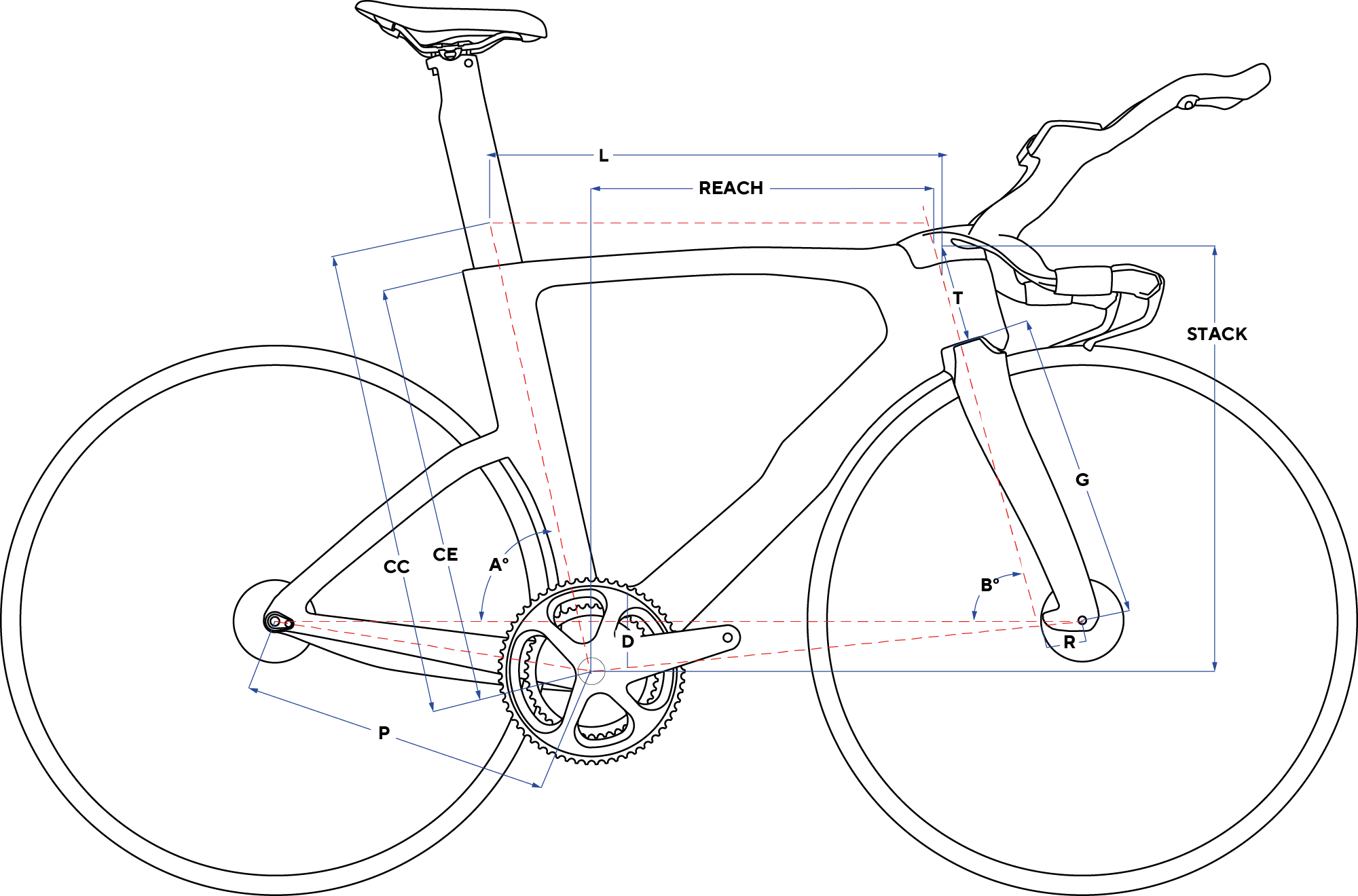

Bolide F Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

ALL COMPONENTS

FRAME SET
FRAME
TorayCa M40X, TiCR™ Cable Routing, Italian BB
FORK
Bolide TT Onda Fork with ForkFlap™, tapered head tube
DRIVETRAIN
CRANKSET AND CHAINRINGS
Shimano Dura Ace Di2 FD-R9100 11s
FRONT DERAILLEUR
Shimano Dura Ace Di2 FD-R9100 11s
REAR DERAILLEUR
Shimano Dura Ace Di2 FD-R9100 11s
CHAIN
Shimano Dura Ace CN-HG901 11s
BOTTOM BRACKET
shimano dura ace
COCKPIT
INTEGRATED HANDLEBAR
custom most tt bar
BAR TAPE
most bar tape
SEATPOST
Pinarello Aero Seatpost
SEAT CLAMP
Seatclamp Twinforce, titanium bolts

COMPARE MODELS

Bolide F
Bolide F
Bolide HR
Bolide HR
Maat Italia - S
Maat Italia - S
Bolide F
Bolide F
Bolide HR
Bolide HR
Maat Italia - S
Maat Italia - S
FRAME SIZES 4 3 5
FRAME TorayCa M40X, TiCR™ Cable Routing, Italian BB TorayCa T1100 1K Dream Carbon with Nanoalloy Technology, Italian BB, UCI Approved
GROUPSET Dura Ace Di2 Singlespeed Singlespeed
WHEELSET DISC
RIM
